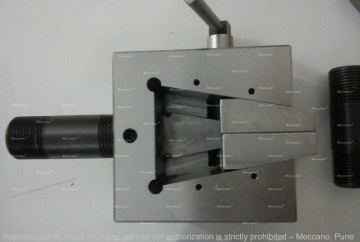

Wedge action grip for 20 kn/ 50 kn with opening 0 to 13 specifications: Hardened Pyramid serrated jaws – 50 X 35 mm surface for clamping Opening 0 ~ 13 mm Hardened V jaws with 50 mm clamping height and 3 to 13 mm diameter for cylindrical Specimen Standard M 27 X 2 mm internal […]

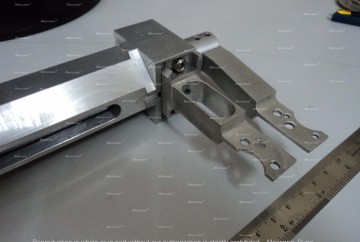

UNI AXIAL TENSILE LOADING MECHANISM ELECTROLYTIC CHARGING FOR HYDROGENATION APPLICATION: Horizontal/ Vertical Submerged Setup in order to study Hydrogenation not only precipitated from extension, but from all contact surface Ring or Tubular Specimen With Cathode Mesh DESCRIPTION: The Mechanism is for loading Test Specimen (Under Tensile Load) with extension for Electrolytic Charging for Hydrogenation in order to […]

tensile testing machine with multiple wedges for plastic/ rubber/ thread sample testing APPLICATION: Plastic/ Rubber/Thread Testing Hydrogen Embrittlement Studies for Metallic Specimens SPECIFICATIONS: Measurement Force: 10 to 125 N Stroke: 10 to 300 mm (With Extension Jaws) Extension Jaws Set Drive: Lead Screw/ Optional Rolled Ball Screw With Mounting Stand/ Frame – Multi Mounting frame […]

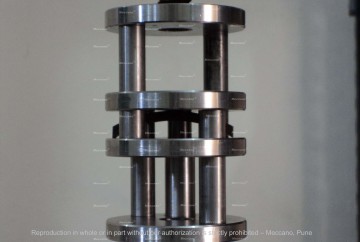

COMPRESSION SPECIMEN TEST SETUP APPLICATION: Deflection under Compression Load Measurement Compression Tests SPECIFICATIONS: Maximum size of Specimen: Diameter 25 mm Measurement: Dial Gauge or Linear Encoder/ Displacement Transducer Attachment Socket: M 27 X 2 P for Testing Machine (others on request) possible integration: Setup with Displacement Transducer/ Linear Encoder With Uni Axial Loading Setup With […]
